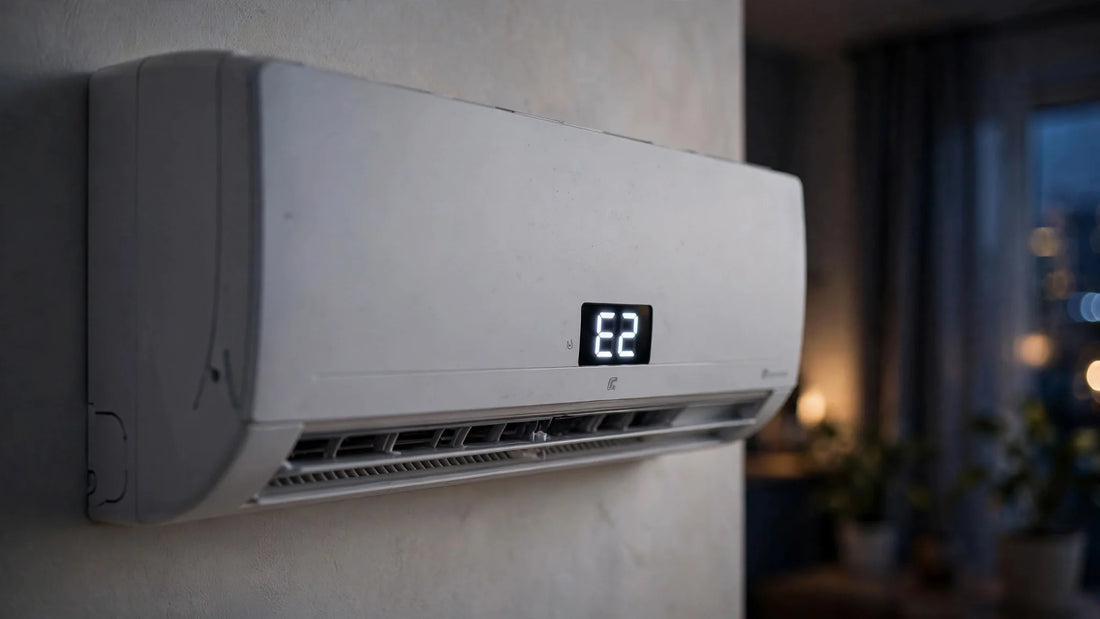

E2 / EH02 Zero Crossing Signal Detection Error

E2 / EH02 Zero Crossing Signal Detection Error

Error Description

E2 / EH02 Error Code ka matlab hota hai ki Indoor PCB ko AC mains ka Zero Crossing Signal detect nahi ho raha hai ya signal abnormal hai. Zero Crossing Signal PCB ko AC waveform synchronize karne ke liye zaroori hota hai. Agar ye signal missing ya unstable ho, to AC protection mode mein chala jata hai aur compressor start nahi hota.


Step 1: Safety First

✅ MCB OFF karein.

✅ Indoor aur Outdoor Unit ki power supply disconnect karein.

✅ Digital Multimeter aur PPE (Safety Gloves, Safety Shoes) ka use karein.


Step 2: Check Input Power Supply

Indoor Unit ke input terminals par voltage measure karein.

Expected Value:

  • 220–240 VAC
  • 50 Hz

Agar voltage bahut low ya high hai, to pehle power supply issue solve karein.


Step 3: Check MCB and Wiring

Inspect karein:

  • Loose Wiring
  • Burnt Terminal
  • Neutral Connection
  • Live Connection
  • Damaged Power Cable

Sabhi terminals ko properly tighten karein.


Step 4: Check Indoor PCB Power Supply

Indoor PCB par measure karein:

  • Main DC Bus Voltage
  • 5 VDC
  • 12 VDC
  • 15 VDC (agar applicable ho)

Agar required voltages missing hain to PCB power supply section faulty ho sakta hai.


Step 5: Inspect the Zero Crossing Circuit

Indoor PCB par Zero Crossing Circuit ko visually inspect karein.

Check karein:

  • Burn Marks
  • Carbon Deposits
  • Cracked Components
  • Loose Connectors
  • Damaged Optocoupler
  • Faulty Resistors
  • Dry Solder Joints

Agar damage mile to PCB repair ya replace karein.


Step 6: Check AC Frequency

Multimeter ya Power Analyzer se frequency check karein.

Expected Value:

  • 50 Hz

Agar frequency abnormal hai to power source ko inspect karein.


Step 7: Check Earthing

Poor earthing bhi Zero Crossing Detection ko affect kar sakti hai.

Ensure karein:

  • Proper Earth Connection
  • Earth Resistance standard limit ke andar ho.

Step 8: Inspect EMI Filter

Indoor PCB ke EMI Filter aur Input Protection Components ko check karein.

Inspect karein:

  • Fuse
  • MOV (Metal Oxide Varistor)
  • NTC Thermistor
  • EMI Filter Components

Faulty component replace karein.


Step 9: Check Indoor PCB

Agar:

  • Input Voltage Normal hai
  • Frequency Normal hai
  • Wiring Theek hai

Lekin error abhi bhi aa raha hai, to Indoor PCB ka Zero Crossing Detection Circuit faulty ho sakta hai.

PCB ko repair ya replace karein.


Step 10: Reset the AC

Power OFF karein.

5 minute wait karein.

Power ON karke error dobara check karein.


Step 11: Perform Test Run

Cooling Mode mein AC start karein.

Observe karein:

✅ Indoor Fan Start ho raha hai?

✅ Outdoor Unit Start ho rahi hai?

✅ Compressor Start ho raha hai?

✅ Error Dubara Aa Raha Hai Ya Nahi?


Possible Causes

  • Low Input Voltage
  • High Input Voltage
  • Unstable Power Supply
  • Loose Power Connections
  • Faulty Zero Crossing Detection Circuit
  • Damaged Indoor PCB
  • Faulty Optocoupler
  • Damaged Resistors
  • Burnt PCB Components
  • Poor Earthing
  • Faulty EMI Filter
  • AC Frequency Abnormal

Required Tools

  • Digital Multimeter
  • Clamp Meter
  • Power Analyzer (if available)
  • Screwdriver Set
  • Continuity Tester
  • Insulation Tester (Megger)

Pro Technician Tip

E2 / EH02 Error ke case mein bina diagnosis ke Indoor PCB replace na karein. Sabse pehle input voltage, AC frequency, neutral connection, earthing aur Zero Crossing Circuit ko thoroughly check karein. Bahut baar ye error unstable mains supply, loose wiring ya damaged input components ki wajah se aata hai. Proper troubleshooting se unnecessary PCB replacement aur customer ka repair cost dono bachaya ja sakta hai.

Error Description

The E2 / EH02 Error Code indicates that the Indoor PCB is unable to detect the AC mains Zero Crossing Signal, or the signal is abnormal. The Zero Crossing Signal is essential for synchronizing the PCB with the AC waveform. If this signal is missing or unstable, the air conditioner enters protection mode and the compressor will not start.


Step 1: Safety First

  • Turn OFF the MCB (Main Circuit Breaker).
  • Disconnect the power supply to both the Indoor and Outdoor Units.
  • Use appropriate PPE (Safety Gloves and Safety Shoes) and a Digital Multimeter.

Step 2: Check the Input Power Supply

Measure the input voltage at the Indoor Unit terminals.

Expected Values:

  • 220–240 VAC
  • 50 Hz

If the voltage is too low or too high, resolve the power supply issue before proceeding.


Step 3: Inspect the MCB and Power Wiring

Check for:

  • Loose wiring
  • Burnt terminals
  • Neutral connection
  • Live connection
  • Damaged power cable

Tighten all terminals and repair any damaged wiring.


Step 4: Check the Indoor PCB Power Supply

Measure the following voltages on the Indoor PCB:

  • Main DC Bus Voltage
  • 5 VDC
  • 12 VDC
  • 15 VDC (if applicable)

If any required voltage is missing, the PCB power supply section may be faulty.


Step 5: Inspect the Zero Crossing Detection Circuit

Visually inspect the Zero Crossing Detection Circuit on the Indoor PCB.

Check for:

  • Burn marks
  • Carbon deposits
  • Cracked components
  • Loose connectors
  • Damaged optocoupler
  • Faulty resistors
  • Dry solder joints

Repair or replace the PCB if any damage is found.


Step 6: Check the AC Supply Frequency

Measure the AC frequency using a multimeter or power analyzer.

Expected Value:

  • 50 Hz

If the frequency is abnormal, inspect the incoming power supply.


Step 7: Check the Earthing (Grounding)

Poor grounding can interfere with Zero Crossing Signal detection.

Ensure:

  • Proper earth connection
  • Earth resistance is within the recommended standard.

Step 8: Inspect the EMI Filter

Check the Indoor PCB EMI Filter and input protection components.

Inspect:

  • Fuse
  • MOV (Metal Oxide Varistor)
  • NTC Thermistor
  • EMI Filter components

Replace any defective components.


Step 9: Check the Indoor PCB

If:

  • Input voltage is normal
  • Frequency is normal
  • Wiring is correct

but the error still remains, the Indoor PCB's Zero Crossing Detection Circuit is likely faulty.

Repair or replace the Indoor PCB as required.


Step 10: Reset the Air Conditioner

  • Turn the power OFF.
  • Wait approximately 5 minutes.
  • Restore power and check whether the error has cleared.

Step 11: Perform a Test Run

Run the air conditioner in Cooling Mode and verify:

  • Indoor fan starts normally
  • Outdoor unit starts properly
  • Compressor starts correctly
  • The error does not reappear

Possible Causes

  • Low input voltage
  • High input voltage
  • Unstable power supply
  • Loose power connections
  • Faulty Zero Crossing Detection Circuit
  • Defective Indoor PCB
  • Faulty optocoupler
  • Damaged resistors
  • Burnt PCB components
  • Poor earthing (grounding)
  • Faulty EMI filter
  • Abnormal AC supply frequency

Required Tools

  • Digital Multimeter
  • Clamp Meter
  • Power Analyzer (if available)
  • Screwdriver Set
  • Continuity Tester
  • Insulation Resistance Tester (Megger)

Professional Technician Tip

Before replacing the Indoor PCB for an E2 / EH02 Error, always verify the input voltage, AC frequency, neutral connection, grounding, and the Zero Crossing Detection Circuit. In many cases, this error is caused by unstable mains power, loose wiring, or faulty input protection components rather than a failed PCB. A systematic diagnosis helps avoid unnecessary PCB replacement and reduces repair costs for the customer.
