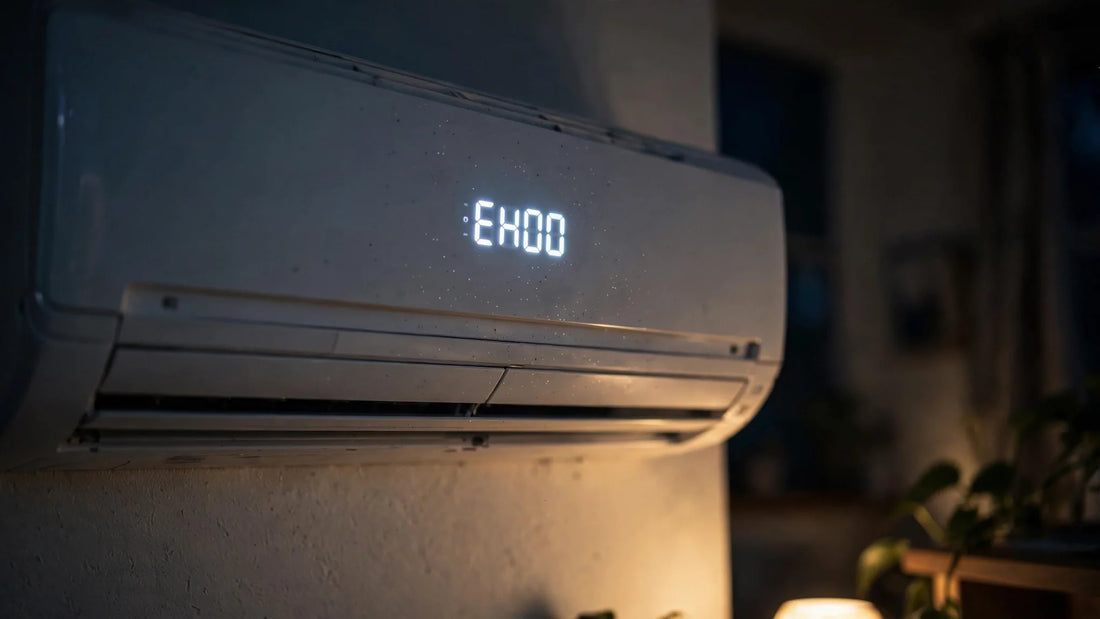

EH00 / EC51 Error Having trouble with your split AC showing EH00 or EC51 error codes? In this video, we’ll walk you through the most common causes and proven troubleshooting steps to get your unit back up and running.

EH00 / EC51 Error Having trouble with your split AC showing EH00 or EC51 error codes? In this video, we’ll walk you through the most common causes and proven troubleshooting steps to get your unit back up and running.

Error Description

EH00 / EC51 Error Code generally indicate karta hai ki EEPROM Communication Fault, Indoor PCB Memory Failure, ya PCB Parameter/Configuration Mismatch detect hua hai. Is condition mein Indoor PCB EEPROM (Electrically Erasable Programmable Read-Only Memory) ko properly read ya communicate nahi kar pata, jiski wajah se AC normal operation nahi karta.

Note: EH00 / EC51 ka exact meaning brand ke hisaab se thoda alag ho sakta hai. Hamesha manufacturer ke Service Manual ko verify karein.

Step 1: Safety First

✅ MCB OFF karein.

✅ Indoor aur Outdoor Unit ki power supply disconnect karein.

✅ Safety Gloves aur Safety Shoes pehnen.

✅ Digital Multimeter ka use karein.

Step 2: Input Power Supply Check Karein

Indoor Unit ke input terminals par voltage measure karein.

Expected Value:

  • 220–240 VAC
  • 50 Hz

Agar voltage low, high ya unstable hai, to pehle power supply issue ko solve karein.

Step 3: AC Reset Karein

  • Power OFF karein.
  • 5–10 minute wait karein.
  • Dobara power ON karke error check karein.

Kabhi-kabhi temporary communication issue ki wajah se bhi ye error aa sakta hai.

Step 4: Indoor PCB Inspect Karein

Indoor PCB ko visually inspect karein.

Check karein:

  • Burn Marks
  • Water Damage
  • Carbon Deposits
  • Loose Connectors
  • Cracked Components
  • Dry Solder Joints

Agar PCB physically damaged ho to repair ya replace karein.

Step 5: PCB Supply Voltage Check Karein

Indoor PCB par measure karein:

  • 5 VDC
  • 12 VDC
  • 15 VDC (agar applicable ho)

Agar required voltages missing ya unstable hain, to PCB power supply section faulty ho sakta hai.

Step 6: EEPROM Circuit Check Karein

Indoor PCB par EEPROM section inspect karein.

Check karein:

  • Loose Solder Joint
  • Corroded Pins
  • Damaged EEPROM IC
  • PCB Track Damage

Agar EEPROM IC defective hai, to manufacturer ke guideline ke hisaab se reprogram ya replace karein.

Step 7: PCB Model aur Configuration Verify Karein

Confirm karein:

  • Installed Indoor PCB AC model ke according hai.
  • PCB Software Version sahi hai.
  • Model Configuration aur Parameter Programming properly ki gayi hai.

Galat PCB ya incorrect programming ki wajah se bhi EH00 / EC51 Error aa sakta hai.

Step 8: Indoor to Outdoor Communication Check Karein

Communication wiring inspect karein.

Check karein:

  • Loose Terminal
  • Incorrect Wiring
  • Open Circuit
  • Short Circuit

Indoor aur Outdoor Unit ke beech communication properly hona chahiye.

Step 9: PCB Connectors Check Karein

Sabhi PCB connectors inspect karein.

Check karein:

  • Loose Connection
  • Oxidation / Corrosion
  • Bent Pins
  • Water Damage

Sabhi connectors ko properly reconnect karein.

Step 10: PCB Reprogram ya Replace Karein (Agar Zarurat Ho)

Agar sab checks normal hain aur error fir bhi aa raha hai:

  • PCB ko manufacturer ke procedure ke hisaab se Reprogram karein (agar supported ho), ya
  • Correct Part Number wali Indoor PCB Replace karein.

PCB replace karne ke baad model configuration ya initialization procedure complete karein.

Step 11: Test Run Karein

AC ko Cooling Mode mein start karein aur verify karein:

✅ Indoor Unit normal start ho rahi hai.

✅ Outdoor Unit se communication proper hai.

✅ Compressor start ho raha hai.

✅ Error code dobara nahi aa raha.

✅ Cooling normal hai.

Possible Causes

  • EEPROM Communication Failure
  • Corrupted EEPROM Data
  • Defective EEPROM IC
  • Indoor PCB Failure
  • Incorrect PCB Model Installed
  • PCB Parameter/Configuration Mismatch
  • Loose PCB Connectors
  • Water-Damaged PCB
  • Burnt PCB Components
  • Unstable Power Supply
  • Communication Wiring Fault

Required Tools

  • Digital Multimeter
  • Clamp Meter
  • Screwdriver Set
  • Continuity Tester
  • Insulation Tester (Megger)
  • EEPROM Programmer (agar supported ho)
  • Manufacturer Service Manual

Pro Technician Tip

✅ EH00 / EC51 Error mein bina diagnosis ke Indoor PCB replace mat karein. Sabse pehle Power Supply, PCB Supply Voltages, EEPROM Circuit, PCB Connectors aur Model Configuration ko thoroughly check karein. Bahut baar ye error Loose Connections, Unstable Power Supply, ya Incorrect PCB Programming ki wajah se aata hai. Proper troubleshooting se unnecessary PCB replacement aur customer ka repair cost dono bachaya ja sakta hai.

Split AC EH00 / EC51 Error Code Fix – Step-by-Step Troubleshooting Guide

Error Description

The EH00 / EC51 Error Code generally indicates an EEPROM communication fault, Indoor PCB memory failure, or PCB parameter/configuration mismatch. The Indoor PCB is unable to read or communicate correctly with the EEPROM (Electrically Erasable Programmable Read-Only Memory), preventing normal system operation.

Note: The exact meaning of EH00 / EC51 may vary slightly depending on the manufacturer. Always refer to the specific brand's service manual for confirmation.

Step 1: Safety First

  • Turn OFF the MCB (Main Circuit Breaker).
  • Disconnect power to both the Indoor and Outdoor Units.
  • Wear appropriate PPE (Safety Gloves and Safety Shoes).
  • Use a Digital Multimeter during troubleshooting.

Step 2: Check the Input Power Supply

Measure the input voltage at the Indoor Unit.

Expected Values:

  • 220–240 VAC
  • 50 Hz

If the supply voltage is unstable, correct the power issue before proceeding.

Step 3: Reset the Air Conditioner

  • Turn the power OFF.
  • Wait for 5–10 minutes.
  • Restore power and check whether the error has cleared.

Sometimes the error is caused by a temporary communication interruption.

Step 4: Inspect the Indoor PCB

Visually inspect the Indoor PCB for:

  • Burn marks
  • Water damage
  • Carbon deposits
  • Loose connectors
  • Cracked components
  • Dry solder joints

Repair or replace the PCB if physical damage is found.

Step 5: Check PCB Supply Voltages

Measure the following voltages on the Indoor PCB:

  • 5 VDC
  • 12 VDC
  • 15 VDC (if applicable)

Missing or unstable voltages may indicate a faulty PCB power supply section.

Step 6: Check the EEPROM Circuit

Inspect the EEPROM area on the Indoor PCB.

Check for:

  • Loose solder joints
  • Corroded pins
  • Damaged EEPROM IC
  • PCB track damage

If the EEPROM IC is damaged, replace or reprogram it if supported by the manufacturer.

Step 7: Verify PCB Model and Configuration

Confirm that:

  • The installed Indoor PCB matches the AC model.
  • The PCB software version is correct.
  • Model configuration and parameter settings are properly programmed.

A mismatched PCB or incorrect programming can trigger EH00 / EC51.

Step 8: Check Indoor-to-Outdoor Communication

Inspect the communication wiring for:

  • Loose terminals
  • Incorrect wiring
  • Open circuit
  • Short circuit

Verify that communication between the Indoor and Outdoor Units is normal.

Step 9: Inspect Connectors

Check all PCB connectors for:

  • Loose connections
  • Oxidation or corrosion
  • Bent pins
  • Water damage

Reconnect all connectors securely.

Step 10: Replace or Reprogram the PCB (If Required)

If all previous checks are normal but the error remains:

  • Reprogram the PCB (if supported by the manufacturer), or
  • Replace the Indoor PCB with the correct part number.

After replacement, perform any required model configuration or initialization procedure.

Step 11: Perform a Test Run

Operate the AC in Cooling Mode and verify:

  • Indoor unit starts normally
  • Outdoor unit communicates correctly
  • Compressor starts properly
  • No error code is displayed
  • Cooling performance is normal

Possible Causes

  • EEPROM communication failure
  • Corrupted EEPROM data
  • Defective EEPROM IC
  • Indoor PCB failure
  • Incorrect PCB model installed
  • PCB parameter/configuration mismatch
  • Loose PCB connectors
  • Water-damaged PCB
  • Burnt PCB components
  • Unstable power supply
  • Communication wiring fault

Required Tools

  • Digital Multimeter
  • Clamp Meter
  • Screwdriver Set
  • Continuity Tester
  • Insulation Resistance Tester (Megger)
  • EEPROM Programmer (if supported by the manufacturer)
  • Manufacturer Service Manual

Professional Technician Tip

Before replacing the Indoor PCB for an EH00 / EC51 Error, always verify the power supply, PCB supply voltages, connector condition, EEPROM circuit, and PCB configuration. Many EEPROM-related errors are caused by poor connections, unstable power, or incorrect PCB programming, not necessarily by a defective PCB. A systematic diagnosis helps prevent unnecessary PCB replacement and reduces repair costs for the customer.


Convert in Hinglish

Split AC EH00 / EC51 Error Code Fix – Step-by-Step Troubleshooting Guide (Hinglish)

Error Description

EH00 / EC51 Error Code generally indicate karta hai ki EEPROM Communication Fault, Indoor PCB Memory Failure, ya PCB Parameter/Configuration Mismatch detect hua hai. Is condition mein Indoor PCB EEPROM (Electrically Erasable Programmable Read-Only Memory) ko properly read ya communicate nahi kar pata, jiski wajah se AC normal operation nahi karta.

Note: EH00 / EC51 ka exact meaning brand ke hisaab se thoda alag ho sakta hai. Hamesha manufacturer ke Service Manual ko verify karein.

Step 1: Safety First

✅ MCB OFF karein.

✅ Indoor aur Outdoor Unit ki power supply disconnect karein.

✅ Safety Gloves aur Safety Shoes pehnen.

✅ Digital Multimeter ka use karein.

Step 2: Input Power Supply Check Karein

Indoor Unit ke input terminals par voltage measure karein.

Expected Value:

  • 220–240 VAC
  • 50 Hz

Agar voltage low, high ya unstable hai, to pehle power supply issue ko solve karein.

Step 3: AC Reset Karein

  • Power OFF karein.
  • 5–10 minute wait karein.
  • Dobara power ON karke error check karein.

Kabhi-kabhi temporary communication issue ki wajah se bhi ye error aa sakta hai.

Step 4: Indoor PCB Inspect Karein

Indoor PCB ko visually inspect karein.

Check karein:

  • Burn Marks
  • Water Damage
  • Carbon Deposits
  • Loose Connectors
  • Cracked Components
  • Dry Solder Joints

Agar PCB physically damaged ho to repair ya replace karein.

Step 5: PCB Supply Voltage Check Karein

Indoor PCB par measure karein:

  • 5 VDC
  • 12 VDC
  • 15 VDC (agar applicable ho)

Agar required voltages missing ya unstable hain, to PCB power supply section faulty ho sakta hai.

Step 6: EEPROM Circuit Check Karein

Indoor PCB par EEPROM section inspect karein.

Check karein:

  • Loose Solder Joint
  • Corroded Pins
  • Damaged EEPROM IC
  • PCB Track Damage

Agar EEPROM IC defective hai, to manufacturer ke guideline ke hisaab se reprogram ya replace karein.

Step 7: PCB Model aur Configuration Verify Karein

Confirm karein:

  • Installed Indoor PCB AC model ke according hai.
  • PCB Software Version sahi hai.
  • Model Configuration aur Parameter Programming properly ki gayi hai.

Galat PCB ya incorrect programming ki wajah se bhi EH00 / EC51 Error aa sakta hai.

Step 8: Indoor to Outdoor Communication Check Karein

Communication wiring inspect karein.

Check karein:

  • Loose Terminal
  • Incorrect Wiring
  • Open Circuit
  • Short Circuit

Indoor aur Outdoor Unit ke beech communication properly hona chahiye.

Step 9: PCB Connectors Check Karein

Sabhi PCB connectors inspect karein.

Check karein:

  • Loose Connection
  • Oxidation / Corrosion
  • Bent Pins
  • Water Damage

Sabhi connectors ko properly reconnect karein.

Step 10: PCB Reprogram ya Replace Karein (Agar Zarurat Ho)

Agar sab checks normal hain aur error fir bhi aa raha hai:

  • PCB ko manufacturer ke procedure ke hisaab se Reprogram karein (agar supported ho), ya
  • Correct Part Number wali Indoor PCB Replace karein.

PCB replace karne ke baad model configuration ya initialization procedure complete karein.

Step 11: Test Run Karein

AC ko Cooling Mode mein start karein aur verify karein:

✅ Indoor Unit normal start ho rahi hai.

✅ Outdoor Unit se communication proper hai.

✅ Compressor start ho raha hai.

✅ Error code dobara nahi aa raha.

✅ Cooling normal hai.

Possible Causes

  • EEPROM Communication Failure
  • Corrupted EEPROM Data
  • Defective EEPROM IC
  • Indoor PCB Failure
  • Incorrect PCB Model Installed
  • PCB Parameter/Configuration Mismatch
  • Loose PCB Connectors
  • Water-Damaged PCB
  • Burnt PCB Components
  • Unstable Power Supply
  • Communication Wiring Fault

Required Tools

  • Digital Multimeter
  • Clamp Meter
  • Screwdriver Set
  • Continuity Tester
  • Insulation Tester (Megger)
  • EEPROM Programmer (agar supported ho)
  • Manufacturer Service Manual

Pro Technician Tip

✅ EH00 / EC51 Error mein bina diagnosis ke Indoor PCB replace mat karein. Sabse pehle Power Supply, PCB Supply Voltages, EEPROM Circuit, PCB Connectors aur Model Configuration ko thoroughly check karein. Bahut baar ye error Loose Connections, Unstable Power Supply, ya Incorrect PCB Programming ki wajah se aata hai. Proper troubleshooting se unnecessary PCB replacement aur customer ka repair cost dono bachaya ja sakta hai.
